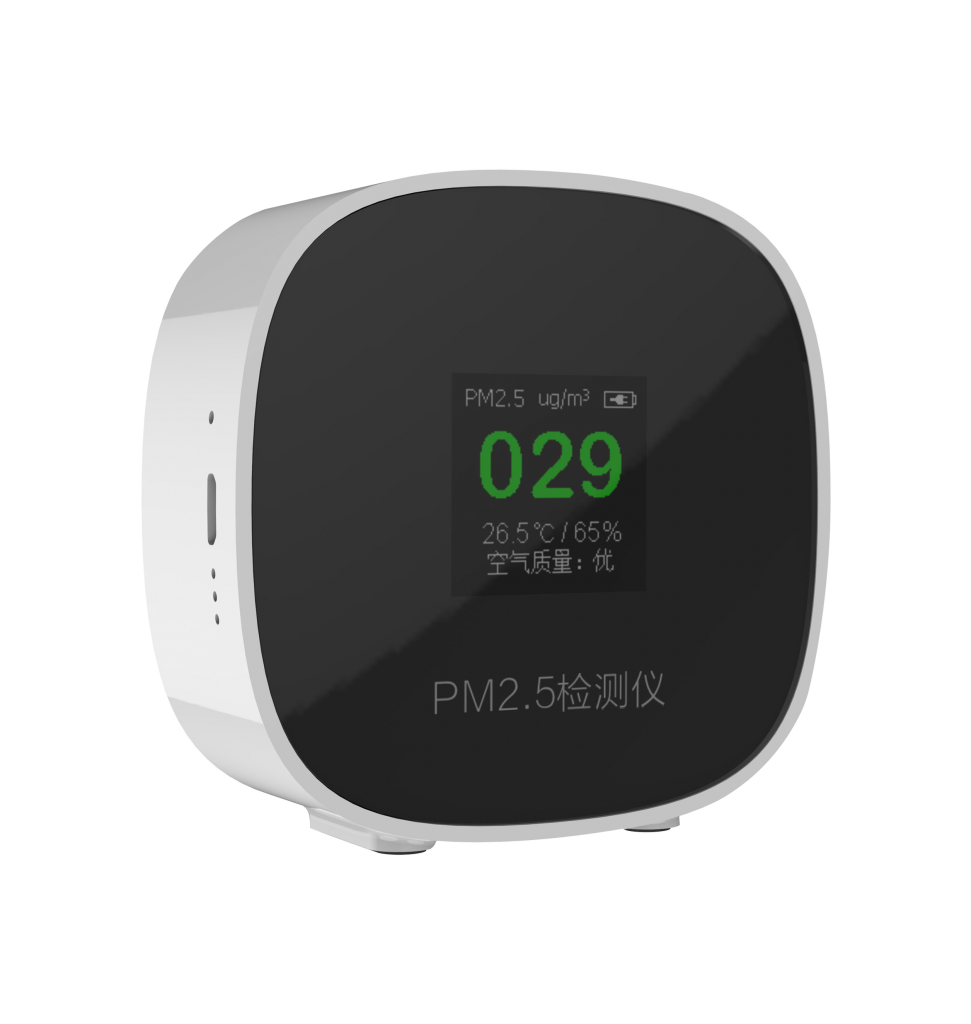

AIR QUALITY MONITOR PM2.5 DETECTOR


产品介绍


  1. Product Specification
    PM2.5 refers to atmospheric particulate matter (PM) that has a diameter less than 2.5 micrometers. It is the air quality index around the world. There are more and more people paying attention to the air quality and healthcare. The smart PM2.5 detector is a smart device with a built-in ZigBee module. The detector is to detect and display the PM2.5 value. Users can monitor the value on their smart phones or tables in real time. The application is available on both iOS and Android platforms. To protect your family, you can connect the detector to air purifier which will be activated when the PM2.5 value reaches the threshold.

    1. Features
      • Support standard protocol IEEE802.15.4.
      • Support the scene that the air purifier will be activated when the PM2.5 value reaches threshold.
      • Sparx Smart application can be installed on a phone or a tablet to monitor the PM2.5 value in real time.
  2. Application
    The PM2.5 detector can be applied at home and office for the purposes of lighting control.
  3. Product Standard
    Comply with the standard system of smart home.
  4. Certification
    Comply with 3C/FCC/CE/RoHS certification.
  5. Product Parameters
    1. Appearance Specification
      Appearance Parameters
      Size 70 x 70 x 31 mm
      Color Silver
      Weight 132 g
    2. Hardware specification
      Item Hardware Specifications
      Chipset CC2530F256
      Button Press the button to monitor the PM2.5 value
      Indicator On: PM2.5 value is being monitored.
      Off: Standby
      Monitoring object 1) Atmospheric particulate matter, industrial dust
      2) Measuring range of PM2.5: 5-4000ug/m33) Concentration of PM2.5: 15%
      Power input DC 5V adaptor, built-in rechargeable lithium-ion battery
      Micro USB
      Working frequency 2.4 GHz
      Testing method Intake air
      Testing accuracy of PM2.5 15%
      Antenna Built-in 2.4G antenna
      ZigBee
      Wireless standard IEEE802.15.4
      Wireless output power 4.5dBm (max)
      Wireless receiving sensitivity -97dBm (min)
      Wireless coverage area 30m
    3. Software Specification
      Item Software Specifications
      Detection function Monitor the PM2.5 values in real time and display them on the APP
      Automatic detection every ten minutes
      Firmware upgrade Upgrade firmware via the serial port
  6. Functions
    Features
    l Principle of testing: optical refraction for detecting the number of dust particles in the air
    l Air pollution index: 5 – 4,000; Resolution 0.001mg/m3
    l LED display, button, reset button, battery
    ll Display PM2.5 value in real time
  7. Product Performance
    Item Performance
    ZigBee Performance Index 155 x 105 x 23.5 mm
    Color Comply with ETSI300 328 and EN301 489
    Reliability High temperature test
    Low temperature test

    Vibration test

    Drop test

    Aging test

    Certification CCC, CE
  8. Product Requirements
    1. User Interface Requirement
      See the user interface of the Sparx Smart application.
    2. Working Environment
      Working Environment Requirement
      Storage Temperature -30℃~+60℃
      Operating Temperature -10℃~+55℃
      Humidity 0~90%, Non-Condensing
