DIMMER


Product introduction


  1. Introduction

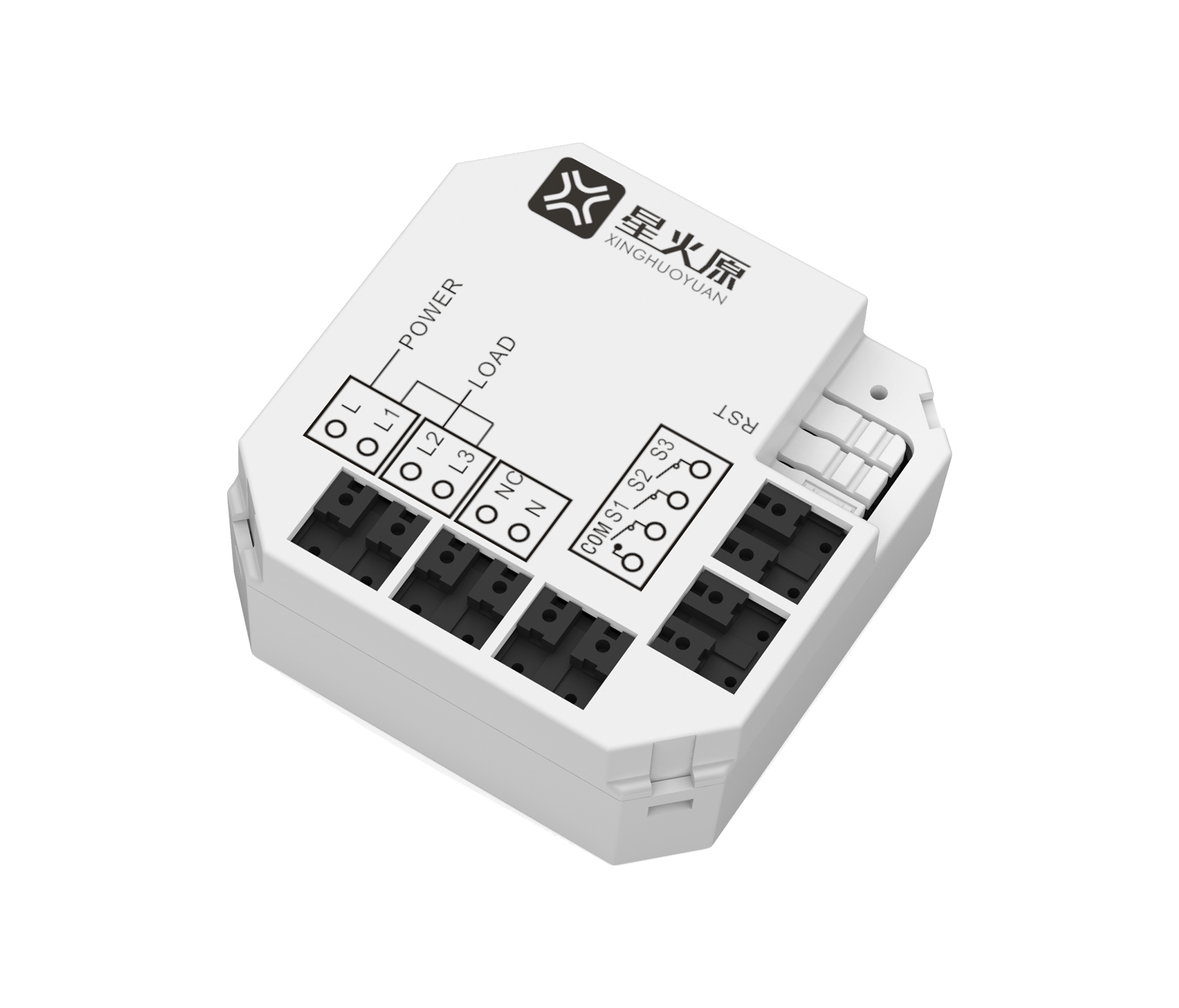

    The smart dimmer and RGB module is a smart device with a built-in ZigBee module. It works with LED lighting to control its power, brightness, color and color temperature. As a ZigBee end device, it can be remotely controlled via Sparx Smart App after being added in the ZigBee network. End users can install a Sparx Smart App on their iOS or Android phones and change the lighting effects via 2G/3G/4G/Wi-Fi
  2. Features
    • Support standard protocol IEEE802.15.4;
    • Set up the lighting effects via physical buttons on the module
    • Control the lighting effects through the application on smart phones or tablets
  3. Application
    The switch dimmer and RGB module can be applied at home and office for the purpose of lighting effect control.
  4. Product Standard
    Comply with the standard system of smart home.
  5. Certification
    Comply with 3C/FCC/CE/RoHS certification.
  6. Product Parameters
    • Appearance Specification
      Appearance Parameters
      Size 48 x 48 x 20 mm
      Color Black
      Weight 30 g
    • Hardware specification
      Item Hardware Specifications
      Chipset CC2530F256
      Button – Press the switch for 6 seconds to add the device;
      Indicator The blue indicator blinks 6 times when the module is being added in the system.
      Antenna External 2.4G antenna
      Power LED power
      ZigBee
      Wireless standard IEEE802.15.4
      Wireless output power 4.5dBm (max)
      Wireless receiving sensitivity -97dBm (min)
      Wireless coverage area 30m
    • Software Specification

      Item
      Software Specifications
      Add new device Set up the default light effects through the buttons
      Function interface Configure the function interface according to the channel numbers
      Lighting effect Set up the power, brightness, color and color temperature of the LED light.
      Firmware upgrade Upgrade firmware via the serial port
  7. Functions
    Features
    l Control lighting effects through the application on iOS or Android phones
    l Add to any scenes, eg. home mode, away mode
  8. Product Performance

    Item
    Performance
    ZigBee Performance Index Comply with ETSI300 328 and EN301 489
    Reliability High temperature testLow temperature test
    Vibration test

    Drop test

    Aging test

    Certification CCC, CE
  9. Product Requirements
    • User Interface Requirement
      See the user interface of the Sparx Smart application.
    • Working Environment
      Working Environment Requirement
      Storage Temperature -20℃~+60℃
      Operating Temperature -10℃~+50℃
      Humidity 0~90%, Non-Condensing
